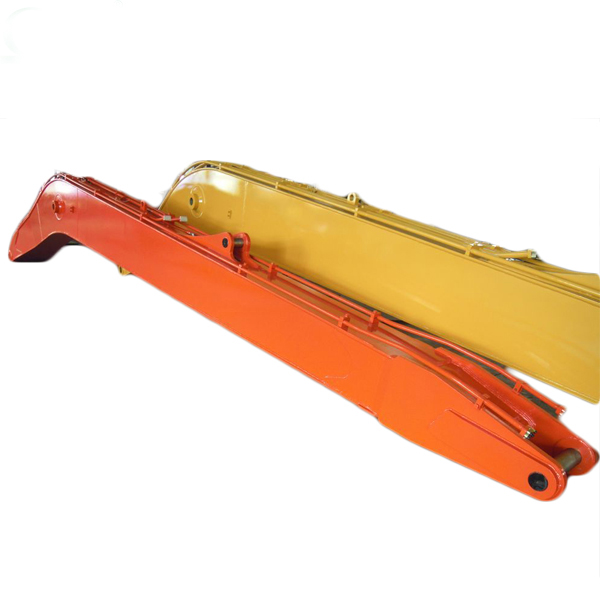

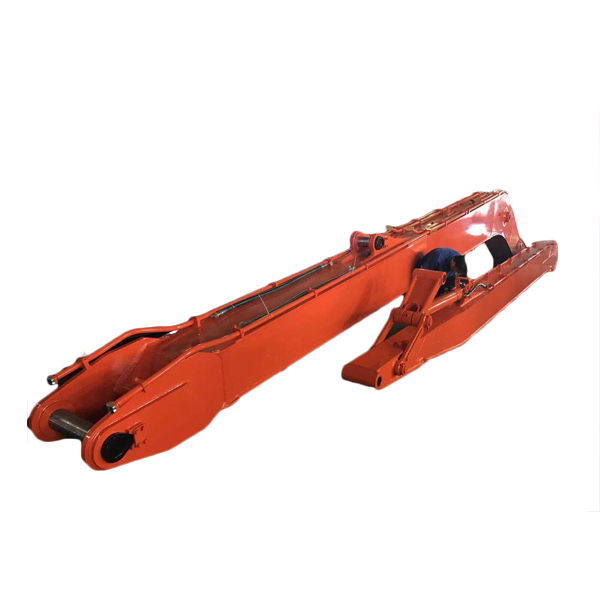

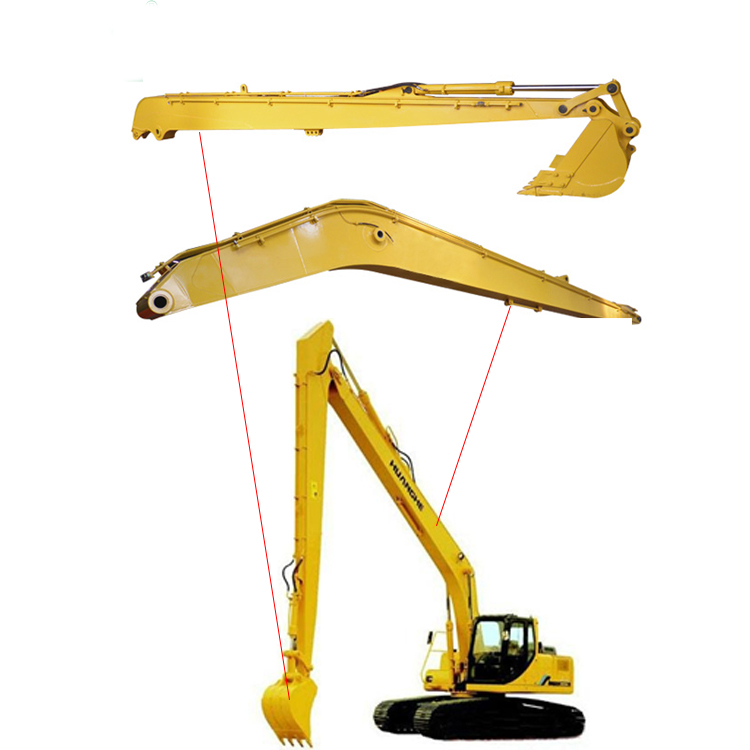

Long Reach Boom 19 Meter for River Cleaning Excavator
Charactaristics:
- Long Reach Booms made of High Strength and Tensile alloy steel Q345B, Better material(700Mpa Yield Strength) is avalaible for tough application
- Internal baffle plates give the structures extra strength and durablility to withstand torsional loads.
- Large welded box section structure with thick, multi-plate fabrication are used in high-stessareas.
- High quality accessories like pipelines, pins, bushes and cylinder, NOK Sealing,
- Camera system can be furnished upon your requirement
- Accept Customized Length of long reach booms for special application
- Lock Valve is optional, It can prevent boom down in the event of hydraulic hose blows
- Bucket cylinder With protective Guard.
- Various of Attachment to fit long reach booms: standard digging bucket, mud bucket, skeleton bucket, grapple.
| Excavator Tonage (Ton) | 12-20 | 20-25 | 30-36 | ||
|---|---|---|---|---|---|
| Total Boom Arm Length (m/'') | 13/42.7'' | 15.4/50.5'' | 18/59.1'' | 18/59.1'' | 20/65.6'' |
| Bucket Capacity (M3) | 0.3 | 0.5 | 0.4 | 0.9 | 0.7 |
| Max. Digging Radius (m/'') ( A ) | 12.5/41'' | 15/49.2'' | 17.3/56.8'' | 17.3/56.8'' | 19.2/63'' |
| Max. digging depth (m/'') ( B ) | 8.6/28.2'' | 10.3/33.8'' | 12.1/39.7'' | 12.1/39.7'' | 14/45.9'' |
| Max. vertically digging depth (m/'') ( C ) | 8.1/26.6'' | 9.4/30.8'' | 11.2/36.7'' | 11.2/36.7'' | 13.1/43'' |
| Max cutting Height (m/'') ( D ) | 11.3/37.1'' | 12.8/42'' | 15.3/50.2'' | 15.3/50.2'' | 16.6/54.5'' |
| Max. unloading height (m/'') ( E ) | 9.8/321.5'' | 10.2/33.5'' | 12.2/40'' | 12.2/40'' | 13.5/44.3'' |
| Min. Rotary radius (m/'') | 4/13.1'' | 4.72/15.5'' | 5.1/16.7'' | 5.1/16.7'' | 13.5/44.3'' |
| Boom Length (m/'') | 7.1/23.3'' | 8.6/28.2'' | 9.9/32.5'' | 9.9/32.5'' | 11/36.1'' |
| Arm Length (m/'') | 5.9/19.4'' | 6.8/22.3'' | 8.1/26.6'' | 8.1/26.6'' | 9/29.5'' |
| Stick Max. cutting force(KN) | 82 | 82 | 64 | 115 | 94 |
| Bucket Max. cutting force (KN) | 151 | 151 | 99 | 151 | 151 |
| Folding Length (mm) ( F ) | 10/32.8'' | 12.6/41.3'' | 14.3/46.9'' | 14.3/46.9'' | 15.3/50.2'' |
| Folding Height (m/'') ( G ) | 3/9.8'' | 3.34/11'' | 3.48/11.4'' | 3.545/11.6'' | 3.57/11.7'' |
| Counterweight (ton) | 0 | 0 | 1.5 | 0 | 3 |
Our Long Reach Booms Sticks fit most makes and models, Include but not limit below models.
-
- Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
- Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
- Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
- Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
- Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
- Kelbeco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
- Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
- Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
FAQ
- Question 1: Does the Excavator with Long Reach Boom suitable for working in sea water?
- Answer: Yes, It can work in sea water and our long reach booms painted with anti-corrosive painting, but please note some wearing component will not last as long as normal because of sea water corrosion , such as Bushes, Bucket, bucket cylinder
- Question 2: Can Long Reach Excavator to do hammering job?
- Answer: It is not recommended, Long Reach Excavator are designed for long reach dredging or moving material, If your job really need long reach hammering, please consult with us, we will give you suitable hammer model
- Question 3: Do I need to buy overseas from you If some wearing parts wear out?
- Answer: All our wearing parts on Long Reach Booms are standard part like bucket cylinder, bushes, cylinder seal, you can buy these
