1.Product Information

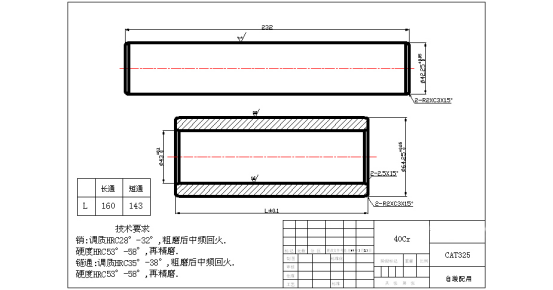

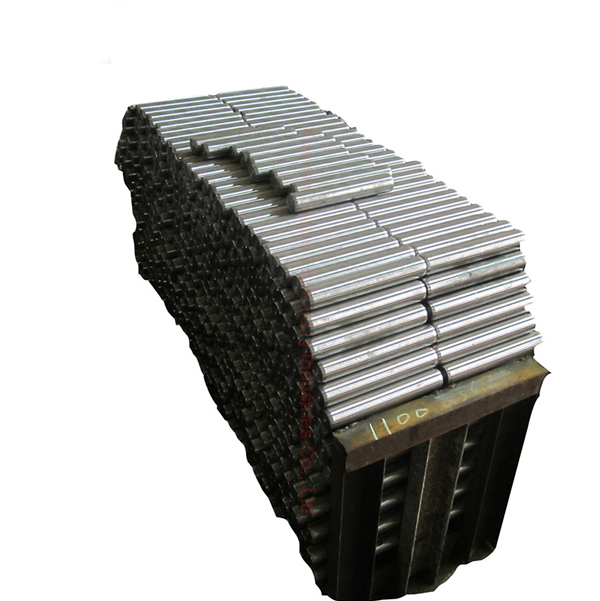

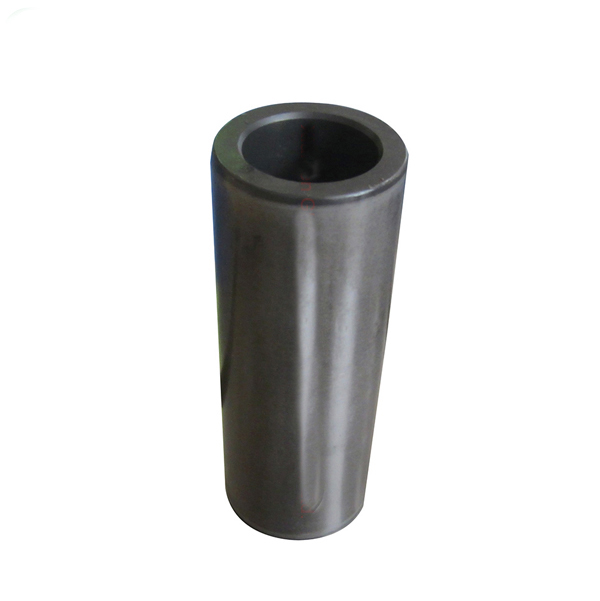

2.Design / Structure / Details Pics

Advantages / Features:

Undercarriage is adopting through hardening system and spraying quenching system while complying with the stringent ISO System. We are able to assure the part has excellent wear resistance even in the most severe working conditions.

We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.

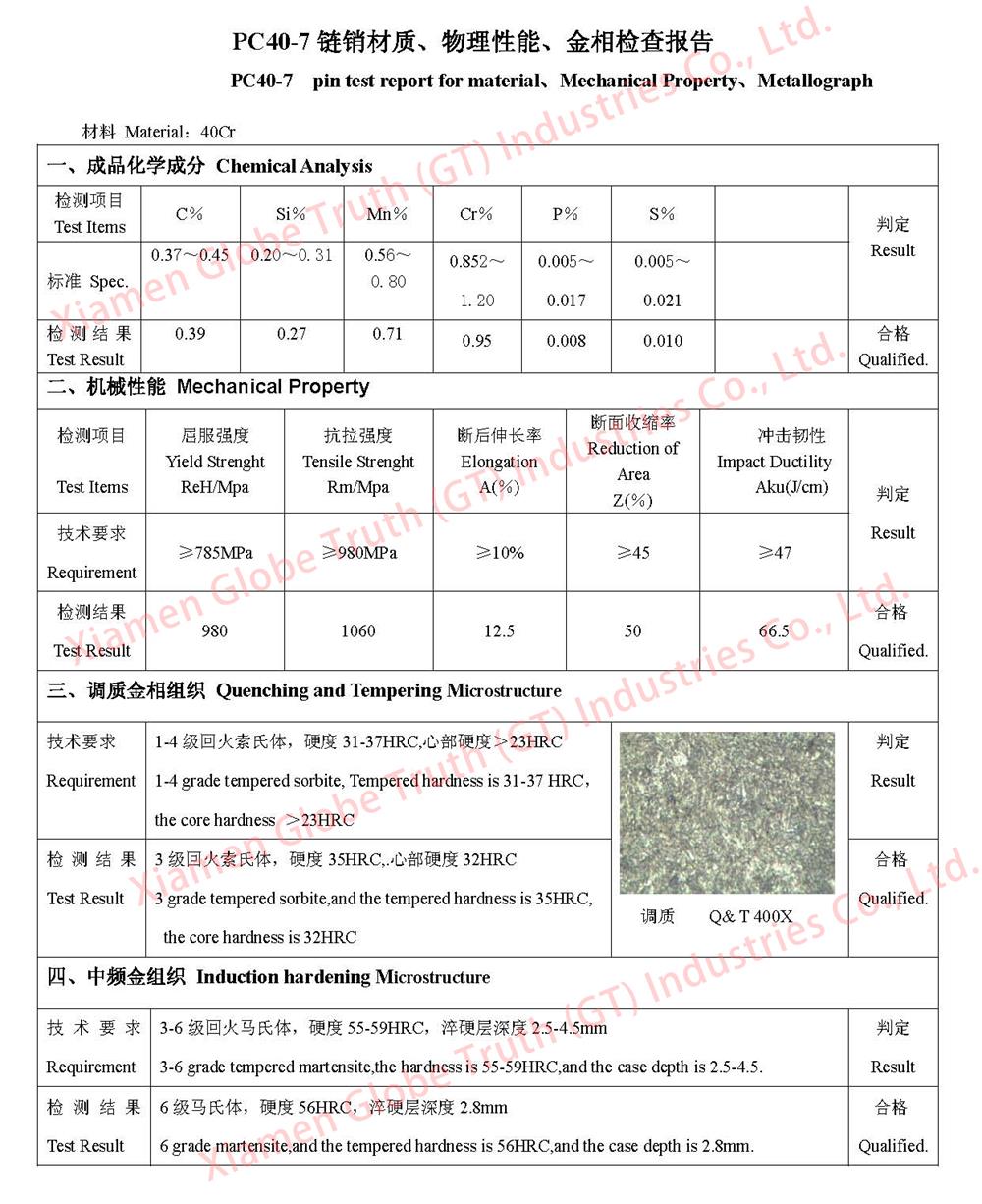

3.Test report

4.Application Types:

1) PC60-5/6, PC100, PC200-1-3-5-6, PC300-3-5, PC400-3-5, PC400-3-5, D20, D30, D50, D60, D5D, D6D, D75, D80 (D85)

2) Hitachi: EX100, EX200-1-2-3, EX300 UH07, UH08,

3)  E110B, E200B (E320), E240 (MS180), E300B, E330, SH200

4) Dawood: DH220,

SH300, HD250,

HD400 (HD450), HD700 (HD770), HD820 (HD850), HD1220 (HD1250),

SK07-2-7, SK200, LS2800FJ, S340, S430
