Sell loader Bucket Cutting Edge 5D9559 8D2786C13 for Bulldozer

Short Description:

1. Product Information Name：Cutting edges for graders, cutting edges for motor grader Part No: 5D9559 Weight: 59kgs Specification:????

Send email to us

Product Detail

Product Tags

1. Product Information

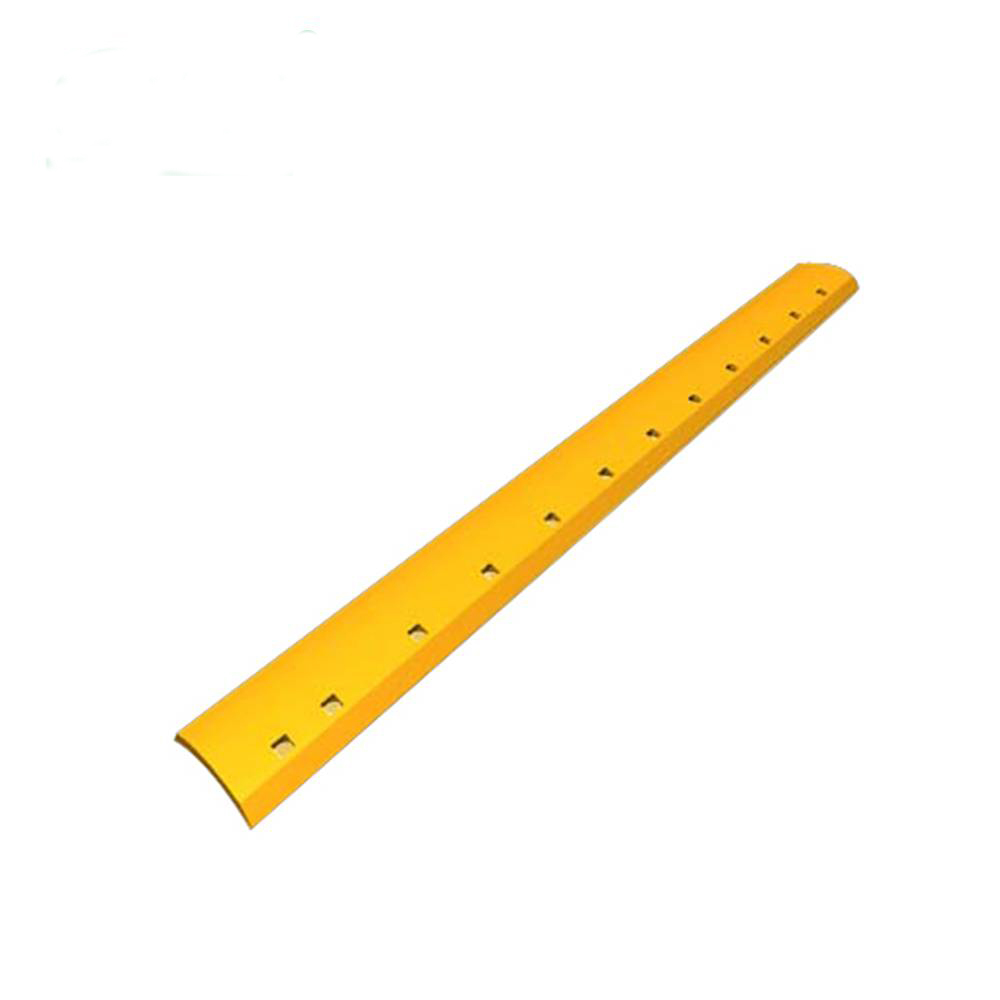

Name：Cutting edges for graders, cutting edges for motor grader

Part No: 5D9559

Weight: 59kgs

Specification: DBC Grader Blade 2133*203*19 15*5/8"

Material: high carbon steel and heat-treated boron steel

Thickness from 13-25mm, width from 152-203mm

Serrated grader blade available

Double beveled curved grader blades and flat grader blades

OEM part number or make as per your drawings or requests

Color: yellow or as customer required

Logo: No logo or customer logo by painting or stamping

2.Design / Structure / Details Pics

3.Advantages / Features:

Adavantage of using Heat Treated Boron Material Ground Engaging Tools

The above technical data shows that the Boron type of GET has superior mechanical properties with much higher resistance to wear and abrasion due to the nature of chemical composition. As a result,the lifespan of Boron type of GET will be at least twice that of carbon steel.Thus,the cost savings on downtime,labour charges and plow bolts and nuts are tremendous.

Mechail Proper with Heat Treatment:

Element	Boron Steel	Carbon Steel
Hardness	440-520HB	280-320HB
Yielding Point	1440N/mm2	600Re-N/mm2
Breaking Point	1674N/mm2	1030RM/N/mm2
Elongation	11%	12%
Resilience at-20C	51J	6J

4.Products list

There are our blade promotion stock list for your reference:

Name	Part number	Specification	Pcs	Stock Qty	Weight(Kg)
Blade	4T3009C25	DBF Cutting Edges	Pcs	844	55.34
Blade	5B5561C16	DBC Grader Blades	Pcs	17	34.90
Blade	5B5564C16	DBC Grader Blades	Pcs	95	29.91
Blade	5D9553C16	DBC Grader Blades	Pcs	1191	29.62
Blade	5D9554C16	DBC Grader Blades	Pcs	2816	34.57
Blade	5D9556C19	DBC Grader Blades	Pcs	223	36.00
Blade	5D9557C19	DBC Grader Blades	Pcs	183	42.01
Blade	5D9558C19	DBC Grader Blades	Pcs	758	50.20
Blade	5D9559C19	DBC Grader Blades	Pcs	1050	58.58
Blade	5D9561C16	DBC Grader Blades	Pcs	735	48.72
Blade	5D9561C16(SBC)	SBC Grader Blades	Pcs	18	51.70
Blade	5D9562C16(SBC)	SBC Grader Blades	Pcs	364	44.30
Blade	7D1158C16	DBC Grader Blades	Pcs	2006	48.35
Blade	7D1577C19	DBC Grader Blades	Pcs	161	58.22
Blade	7T1633C16	DBC Grader Blades	Pcs	280	29.91
Blade	8D2786C13	DBC Grader Blades	Pcs	146	24.10
