YuChai 600Kg Mini Pelle Machine YC22-9 Mini Excavator For Green Houses

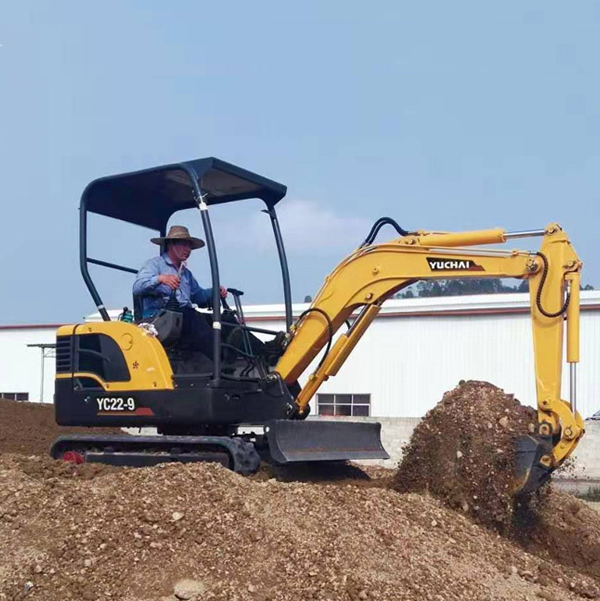

YC22-9 Excavator
Weight:2180kg
Rated power:20.5kW/2200rpm
Standard bucket capacity:0.09m3
Standard bucket wide:555mm
YC22-9 mini excavator Dimension parameters
| Transportation dimension | ||
| Overall length of transportation | 4120mm | |
| Overall width | 1300mm | |
| Overall height | 2290mm | |
| Other Parameter | ||
| Width of undercarriage | 1300mm | |
| Length of track | 1880mm | |
| Width of track | 250mm | |
| Height between undercarriage and ground | 250mm | |
| Height between platform and ground | 480mm | |
| Platform tail turning radius | 1100mm | |
| Track gauge | 1490mm | |
| Fuel tank capacity | 29L | |
| Hydraulic oil tank capacity | 38L | |
YC22-9 mini excavator Operating parameters
| Max. digging height | 3740mm |
| Max. digging depth | 2620mm |
| Max. digging radius | 4480mm |
| Max. digging radius on ground level | 4390mm |
| Max. dumping height | 2250mm |
| Min. slewing radius | 2065mm |
| Max. vertical digging depth | 2400mm |
| Gradeability | 58%(30°） |
| Max. digging force of arm | 9.6kN |
| Max. digging force of bucket | 14.9kN |
| Traveling speed | 2.25km/h |
| Max. hauling force | kN |
| Slewing speed of platform | 10~12.5rpm |
